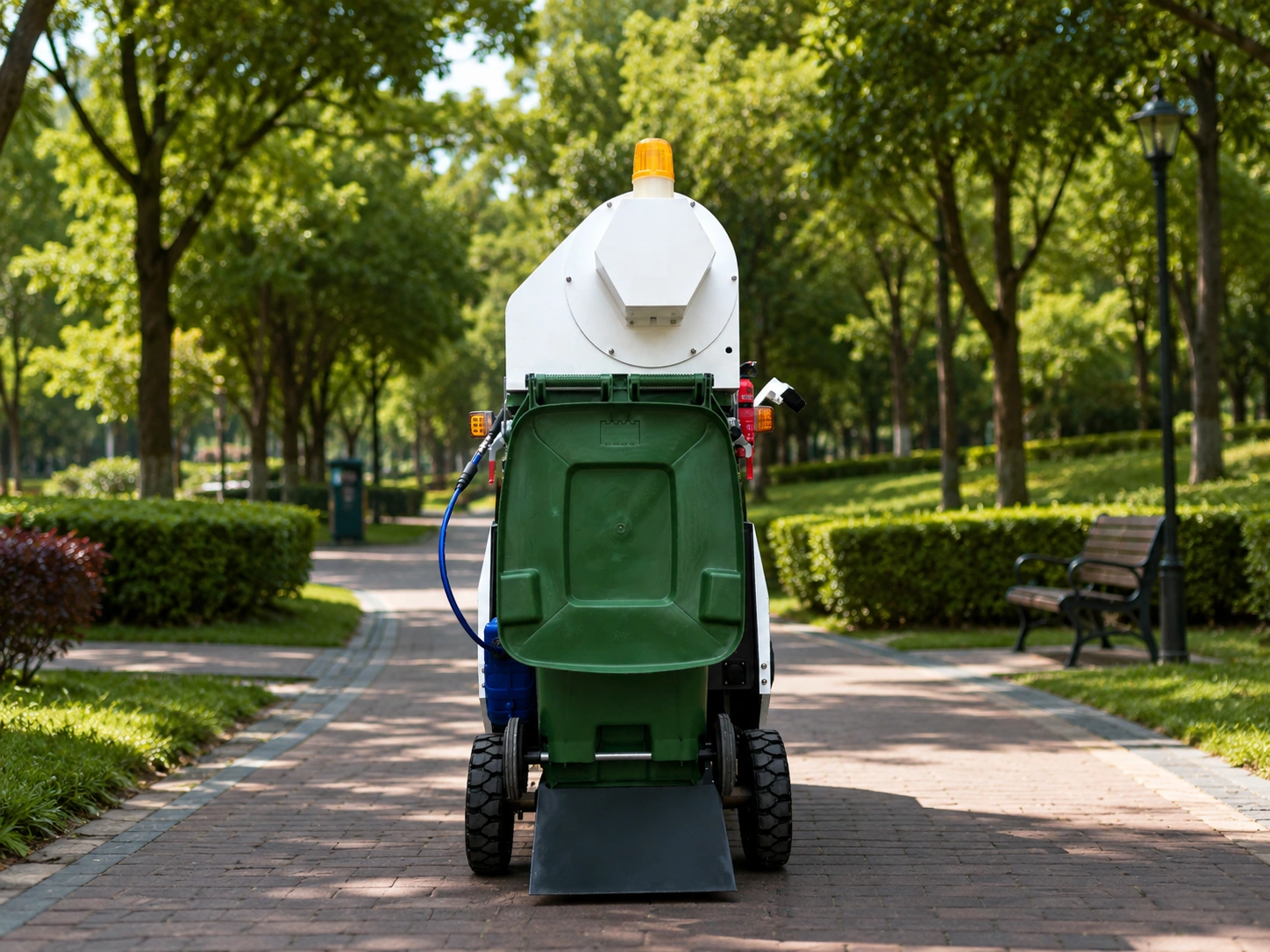

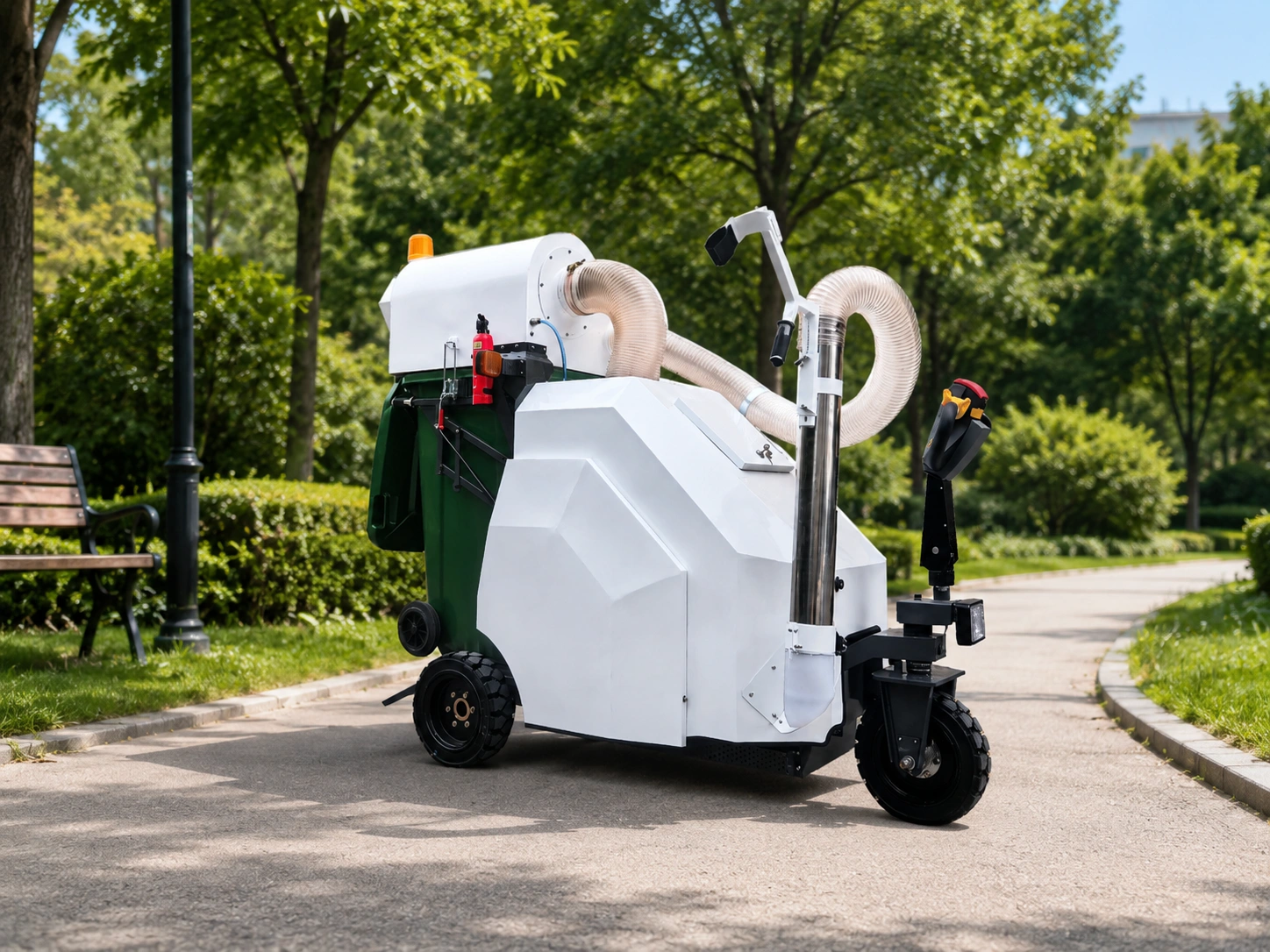

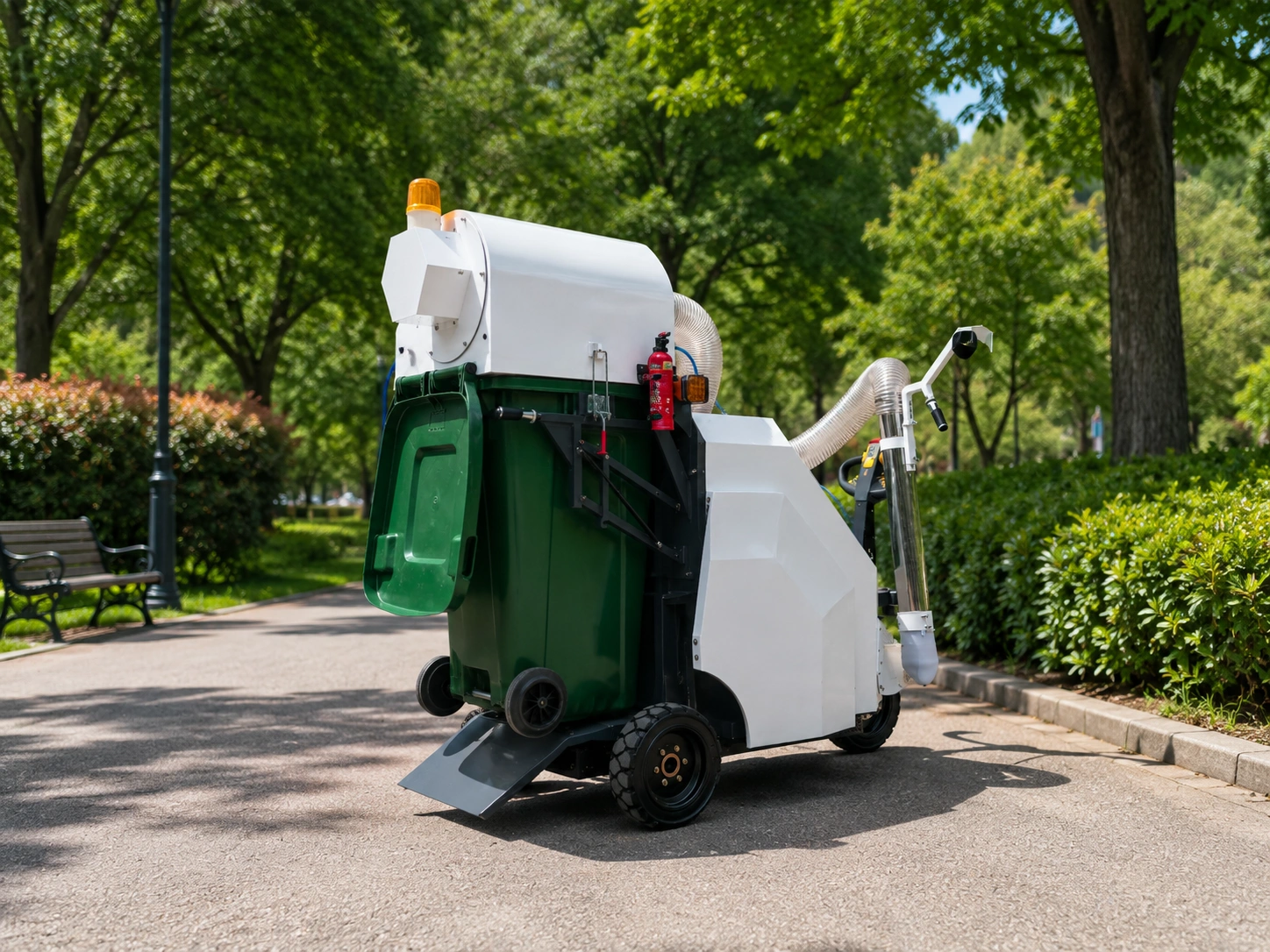

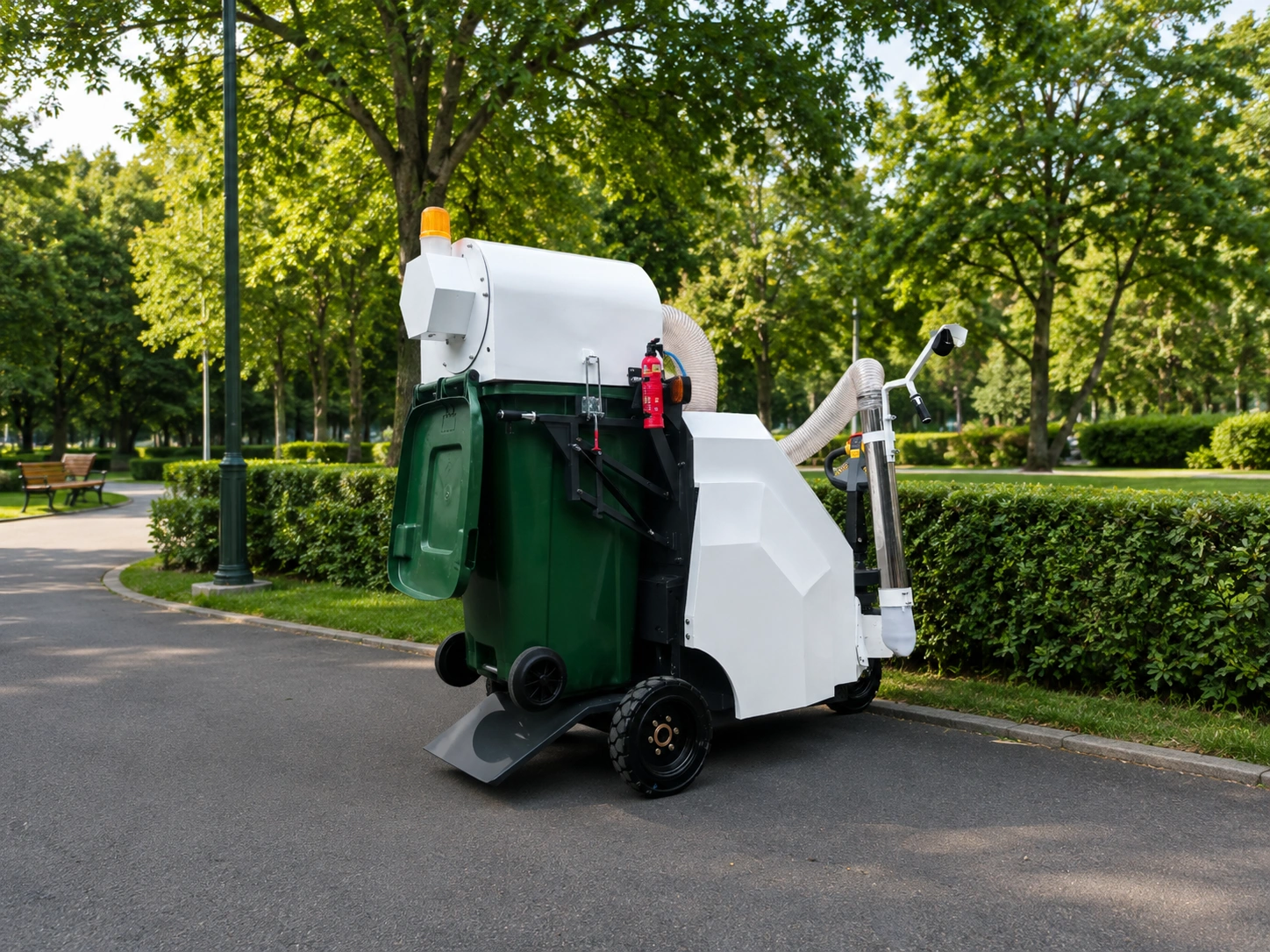

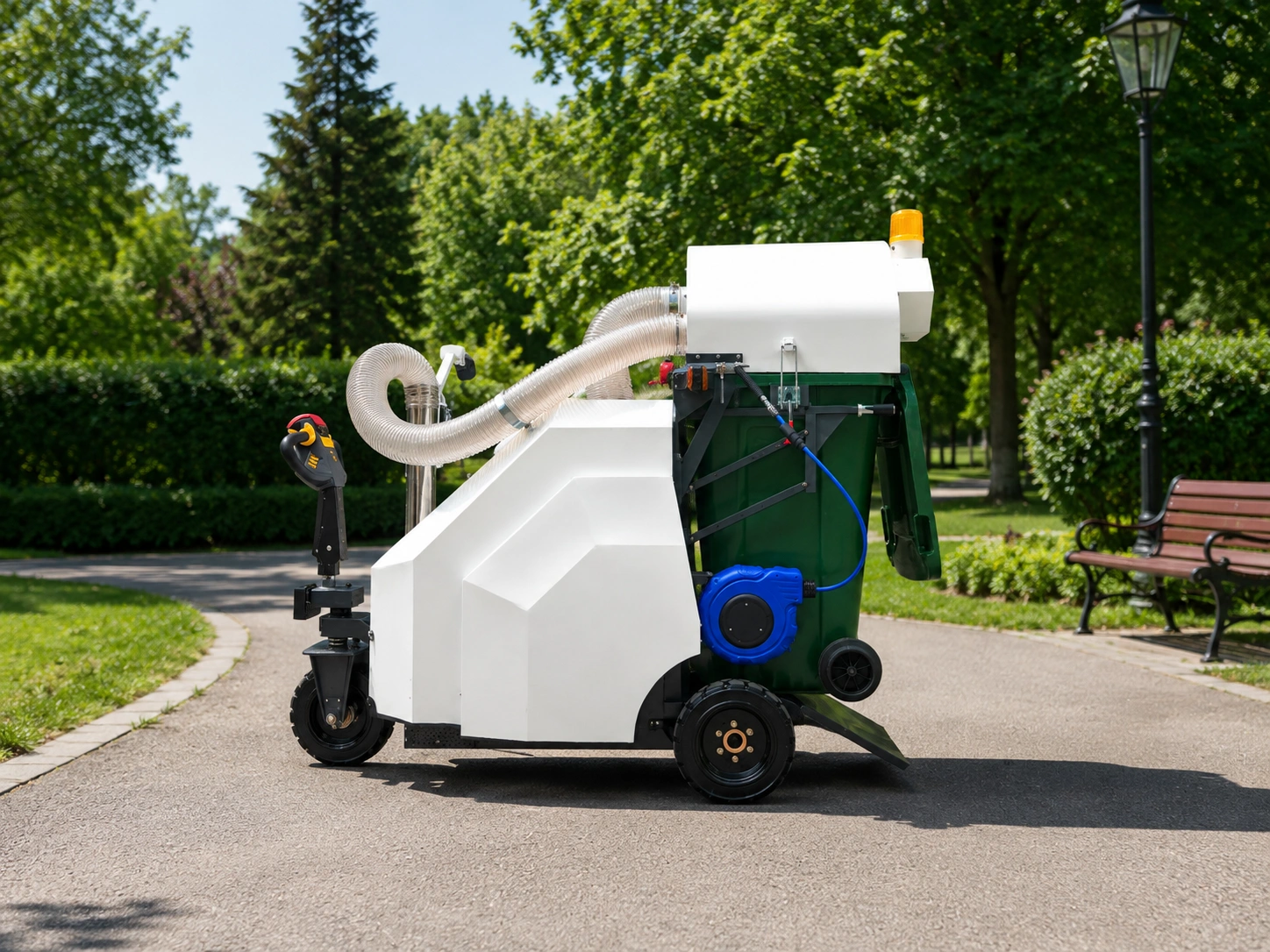

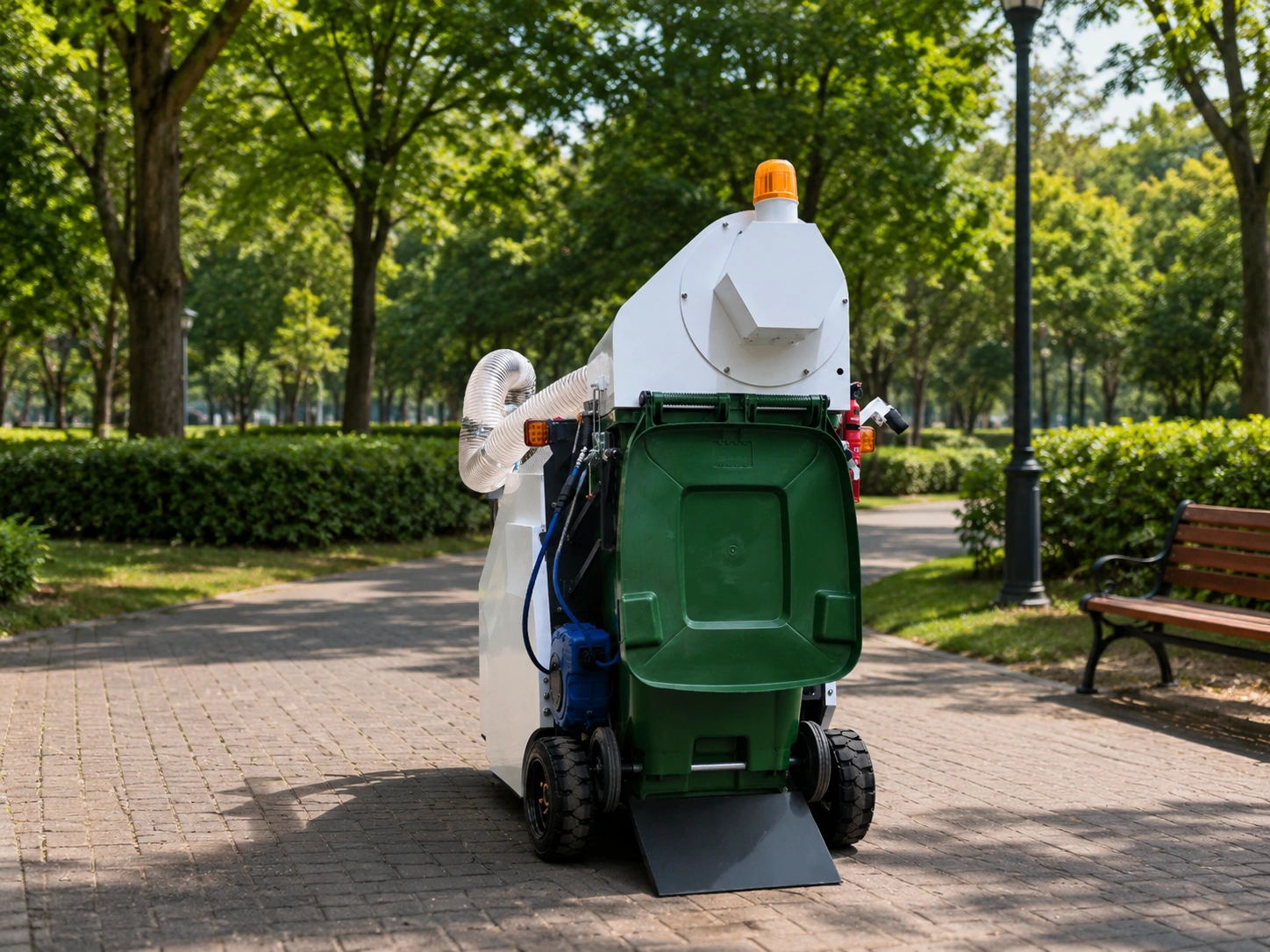

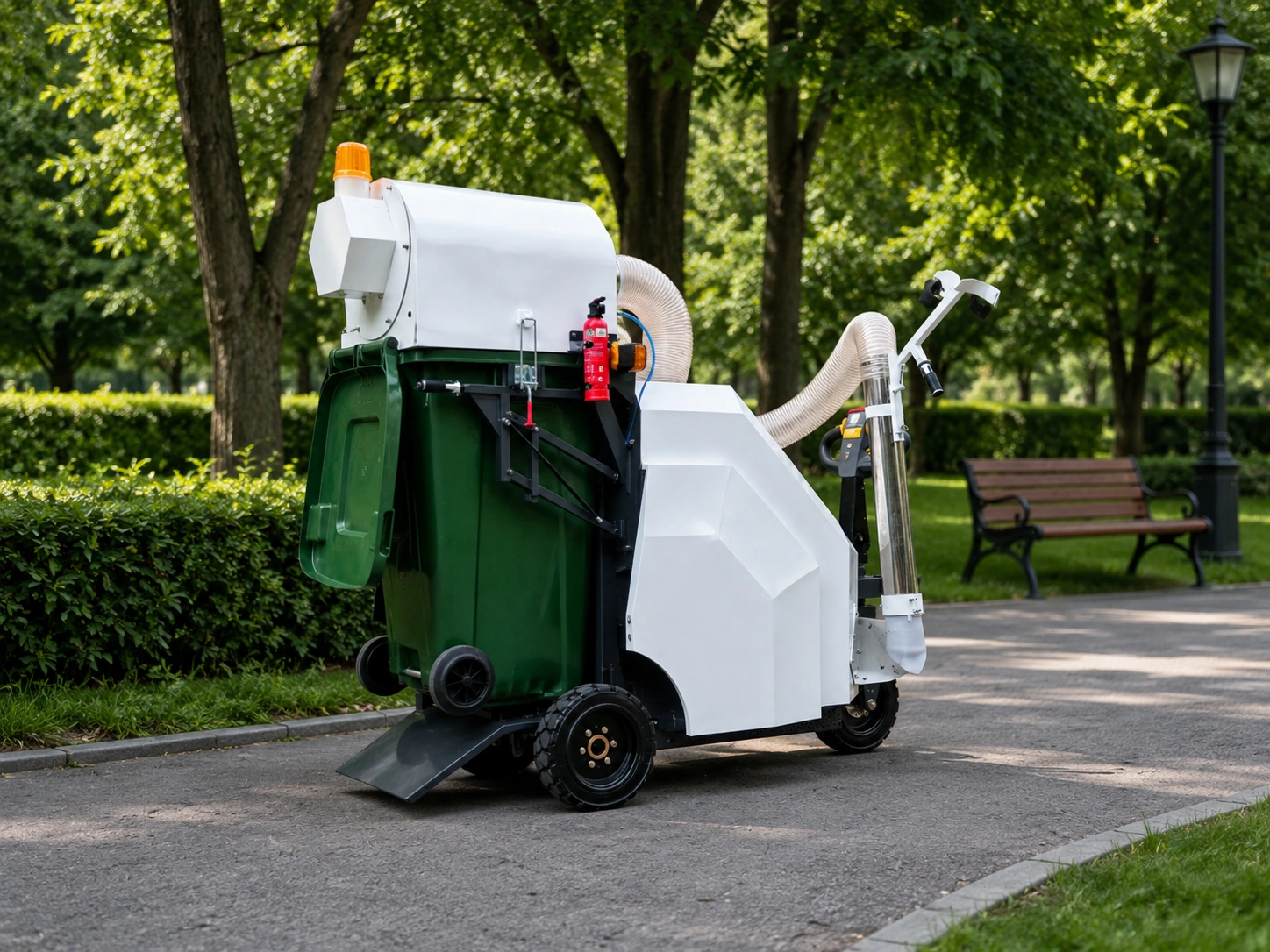

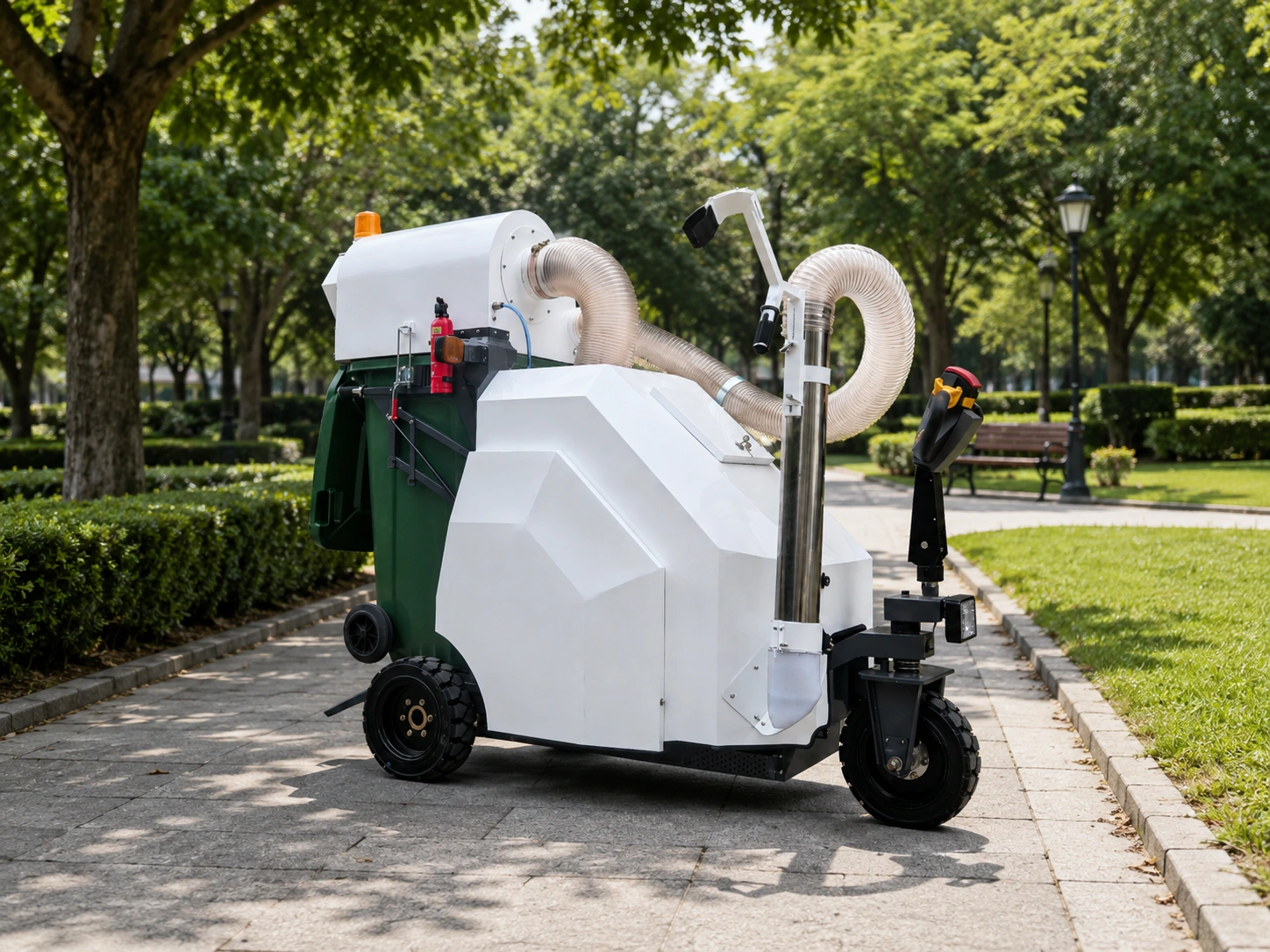

The Elephant Trunk Garbage Collector is a compact self-propelled cleaning machine designed for parks, squares, commercial streets, residential communities, greenways, and narrow urban roads. With strong suction, low noise, flexible turning, a 240L standard trash bin, and durable stainless steel suction pipe with silicone nozzle, it is suitable for collecting leaves, bottles, sand, paper, and other daily waste in crowded or narrow cleaning areas.Compared with manual garbage picking, the Elephant Trunk Garbage Collector improves cleaning efficiency and reduces labor intensity. Compared with large road sweepers, it is smaller, quieter, more flexible, and easier to operate in narrow areas. It is a practical cleaning solution for property management companies, municipal cleaning teams, parks, scenic spots, campuses, and commercial areas.Contact us to get more specifications, configuration options, and project quotation.
| Parameter Name | Parameter Value |
|---|---|
| Product Name | Elephant Trunk Garbage Collector |
| Straw Diameter | 110mm |
| Straw Length | 3000mm |
| Filtration Area | 10㎡ |
| Filter Element | 1 pc |
| Filtration Accuracy / Efficiency | 0.5 micron / 99.99% |
| Vacuum Fan | 48V 2.2KW |
| Suction Capacity | 0.42m³/s |
| Cleaning Ability | 10000㎡/h |
| Maximum Suction Particle Size | 24cm³ |
| Lithium Battery | 48V 300AH |
| Endurance | 6–8h |
| Charging Time | 6–8h |
| Noise Beside Operator | ＜72 dB(A) |
| Noise at 7.5m | ＜58 dB(A) |
| Water Tank | 15L |
| High-Pressure Washing | 10m hose reel + water nozzle |
| Pump Flow Rate | 1.7L/min |
| Drive Motor | 48V 1.2KW |
| Gradability | 25° |
| Speed | 4.5km/h |
| Fan Speed Regulation | 0 / 50% / 75% / 100% |
| Turning Radius | 900mm |
| Trash Can | 240L |
| Minimum Ground Clearance | 120mm |
| Overall Dimensions | 1990 × 862 × 1675mm |
| Total Machine Weight | 360kg |
| Package Dimensions | 2240 × 1140 × 1900mm |
| Container Loading | 20GP: 4 pcs; 40GP: 10 pcs |
