Wing Van Trailer is an innovation in the logistics industry. As a special semi trailer, the biggest feature is that it is equipped with unique side panels on both sides. When loading and unloading cargo, the wings of the trailer can open like wings, allowing operators to easily load and unload cargo. This new design fits the complexity of modern supply chains and the variability of needs, represents the cutting-edge technology in the field of modern logistics and transportation, and is the best choice for every enterprise seeking excellent transportation solutions.
Why Choose Wing Van Trailer
✔ Fast Side-Loading Efficiency: Hydraulic wing panels open on both sides to significantly reduce loading and unloading time compared with conventional box trailers.
✔ Ideal For Urban Distribution: Well suited for city logistics where narrow roads, limited loading bays, and frequent delivery stops require flexible operations.
✔ Versatile Cargo Capability: Designed for transporting FMCG products, large home appliances, retail goods, and other palletized cargo requiring efficient handling.
✔ Stop-And-Go Delivery Advantage: Enables quick loading and unloading at small warehouses, supermarkets, and retail stores without dedicated dock facilities.
✔ Cross-Border Logistics Efficiency: The side-opening design helps streamline cargo inspections and improve turnaround times in cross-border transportation.
✔ Exhibition & Event Support: An effective solution for temporary sales events, exhibitions, and mobile merchandising operations requiring rapid setup.
✔ Emergency Response Readiness: Frequently used for the fast deployment of relief supplies, medical equipment, and other urgent materials during emergencies.
✔ Built For Modern Supply Chains: Combining speed, flexibility, and operational efficiency, the Wing Van Trailer helps fleets improve productivity and reduce delivery time.

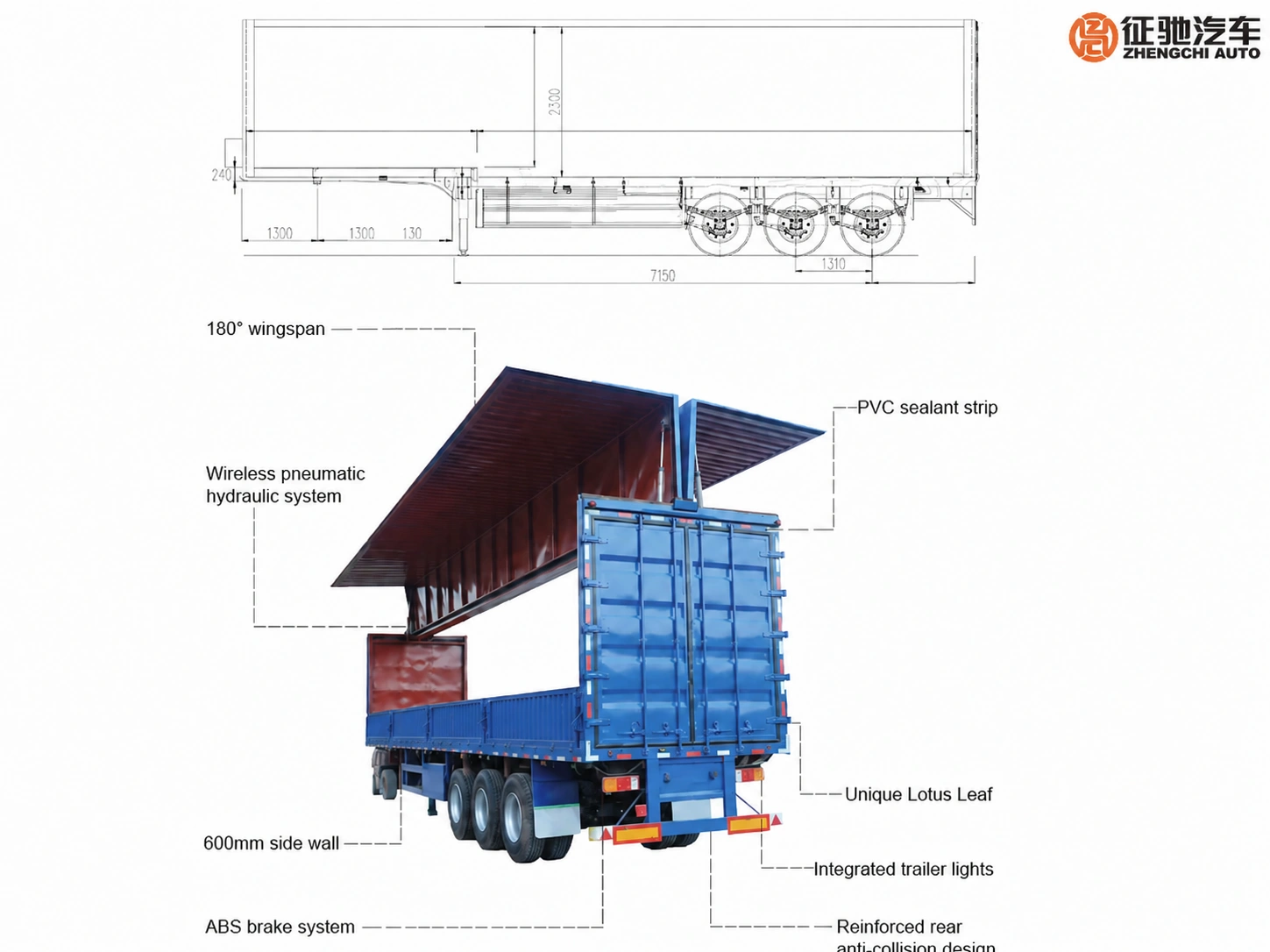

Product Details
Wireless pneumatic hydraulic system
The entire trailer is equipped with a wireless remote control system and four double-section hydraulic cylinders to ensure quick opening of the side wall.
PVC sealant strip
PVC sealing strips are used on the back door and the sides of the compartment to ensure the absolute sealing of the compartment and prevent moisture.
unique lotus leaf
Unique hinge design allows the two rear doors to be opened 270°
600mm side wall
The trailer has 600mm removable side walls on both sides to meet various transportation methods.
Available Configurations
Axle Configuration: 2 Axles / 3 Axles / 4 Axles
Trailer Length: 20FT / 40FT / 45FT / Customized
Wing Opening Type: Single-Side Opening or Double-Side Opening
Wing Operation: Manual, Hydraulic, or Electric Hydraulic System
Suspension: Mechanical Suspension or Air Suspension
Axle Brand: FUWA / BPW / Customized Brands
Tires: Tubeless or Tube-Type Tires
Floor Material: Steel Floor, Checkered Plate, or Wooden Floor
Rear Door Configuration: Double Rear Doors or Customized Door Design
Cargo Capacity: Customized According to Transport Requirements
Color: Customized Paint Color Available
Logo: Customer Branding Available
Landing Gear: JOST, FUWA, or Customized Options
Spare Parts Package: Optional Spare Parts Support Included
Applications
FMCG Distribution & Logistics
Home Appliance Transportation
Retail Goods Delivery
E-Commerce Logistics
Palletized Cargo Transport
Urban & Intercity Distribution
Cross-Border Freight Operations
Exhibition & Event Logistics
Emergency Relief Transportation
Fleet Expansion & Replacement
| Main Component / Item | Technical Specification |
| Product Type | Wing Opening Van Trailer |
| Body Description (mm) | 12500 × 2700 × 4000 mm |
| Chassis | Q700 steel plates with quality sheet for automatic arc welding submerged meta, compatible with body design, one-piece chassis. |
| Side Beam | 140mm channel steel |
| Type | Double-sided wings are opened |
| Electro-Hydraulic Unit | 1 pcs |
| Hydraulic Cylinder | 4 pcs |
| Axles | 13tons * 3 pcs |
| Suspension | Mechanical Suspension |
| King Pin | 2.00″ or 3.5″; Made of wrought iron, bolt-in type; JOST |
| Landing Leg | Landing leg 28 tons capacity, 80 tons of static capacity. (28 ton landing leg, double speed telescopic, manual uses the mechanical bear side landing leg, operated manually). |
| Tyre | 12R22.5 * 8 pcs (Note: Standard 3-axle models usually require 12 pcs, please double check) |
| Electrical System | 24v, 7core socket, with brake light, tail light, clearance light and signal light and reverse light, all lights is LED (suitable for all market). |
| Welding And Painting | Submerged arc, automatic sandblast welding in the trailer body, anti-corrosion process before painting primary, spray wax over suspension prior to shipment. |
| Others | Safety wire rope, 3m reflectors, rear marking reflector |
